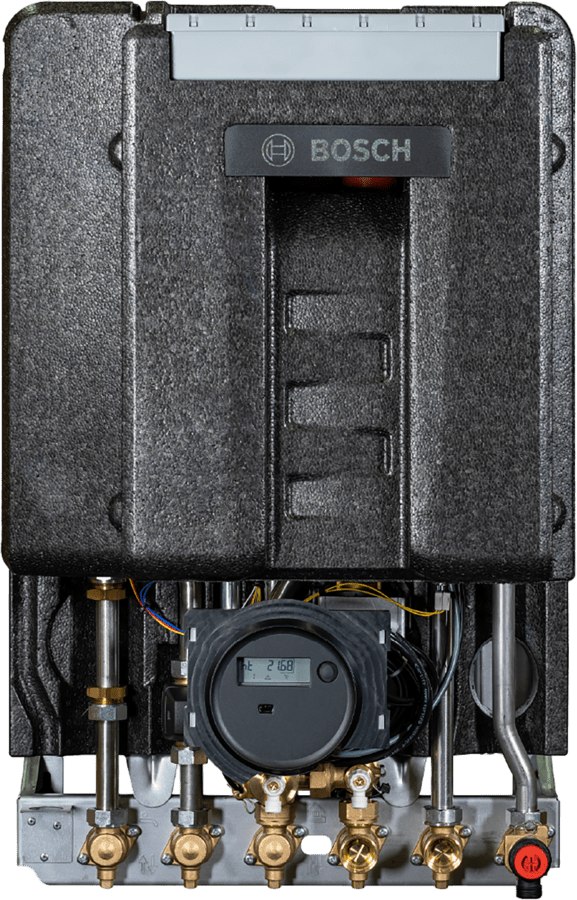

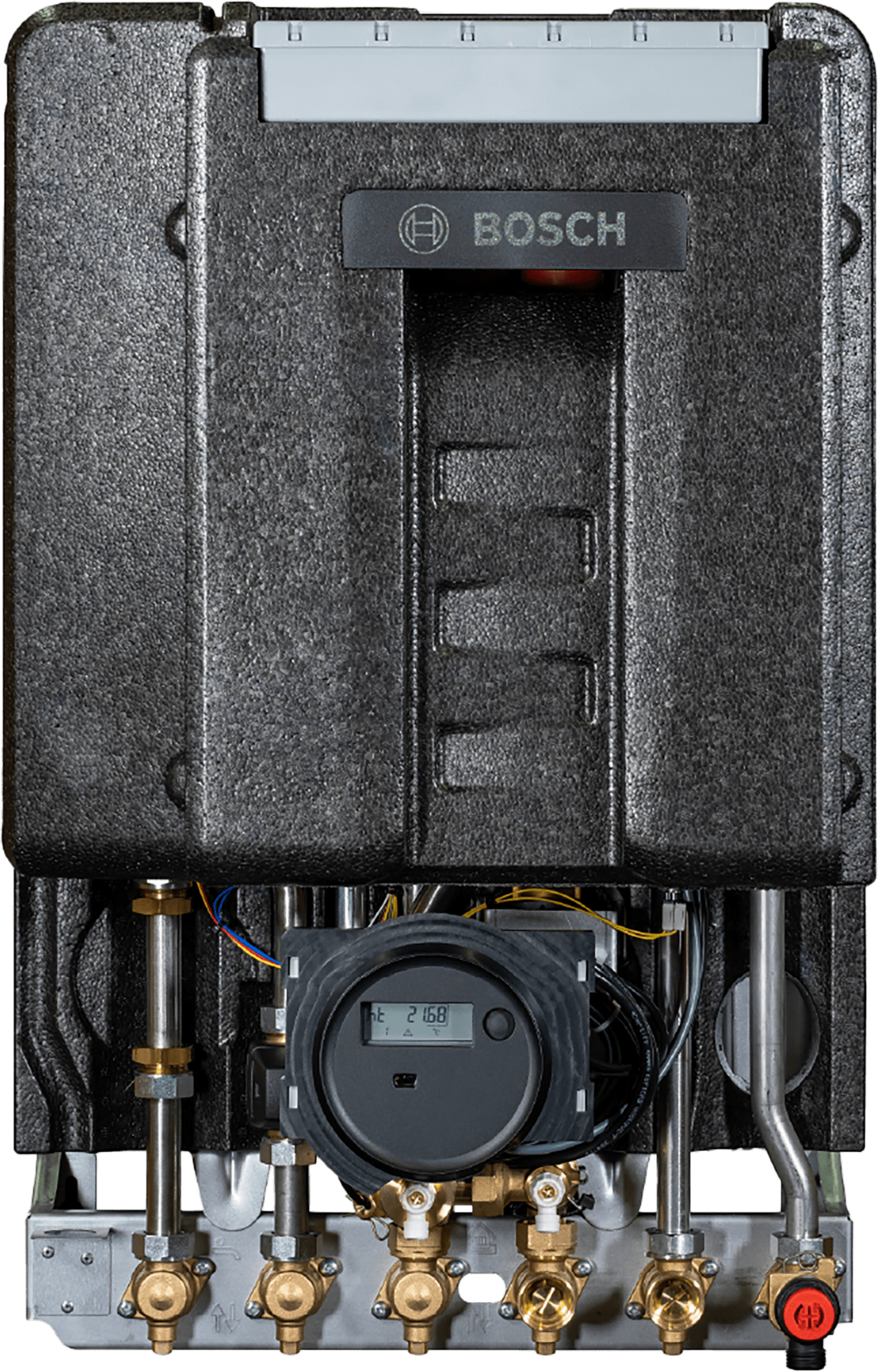

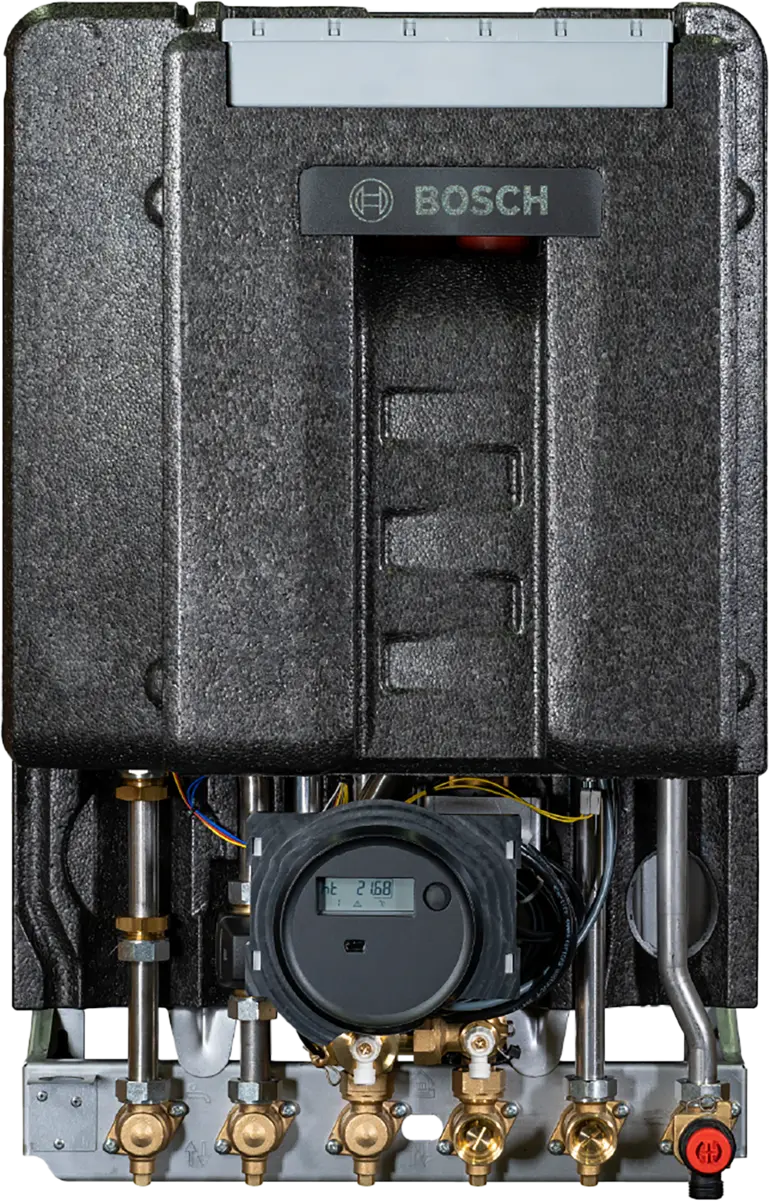

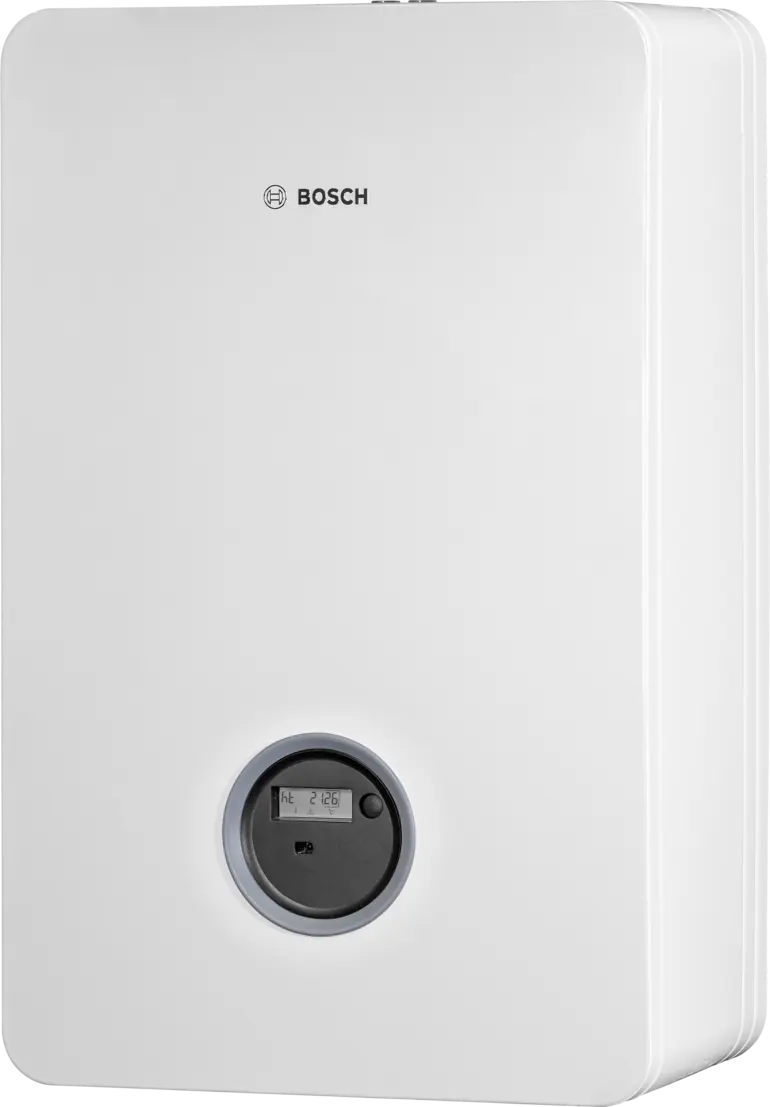

Flow 8000 Direct HIU

Book a site visit

Low temp. Integration – Maximum performance, minimum temperature loss.
Zero approach temp. – For more efficient low temperature heating systems.
Smaller radiators – Preserve space in smaller properties and keep energy costs down.
Central water treatment – Maintained in plant rooms, reducing disruption to individual homes.
Central water pressure – Top up pressure in plant rooms, reducing maintenance, call outs and interventions.
Central network pump – Costs for individual homes lowered, as system flow is maintained from plant rooms.

Benefits

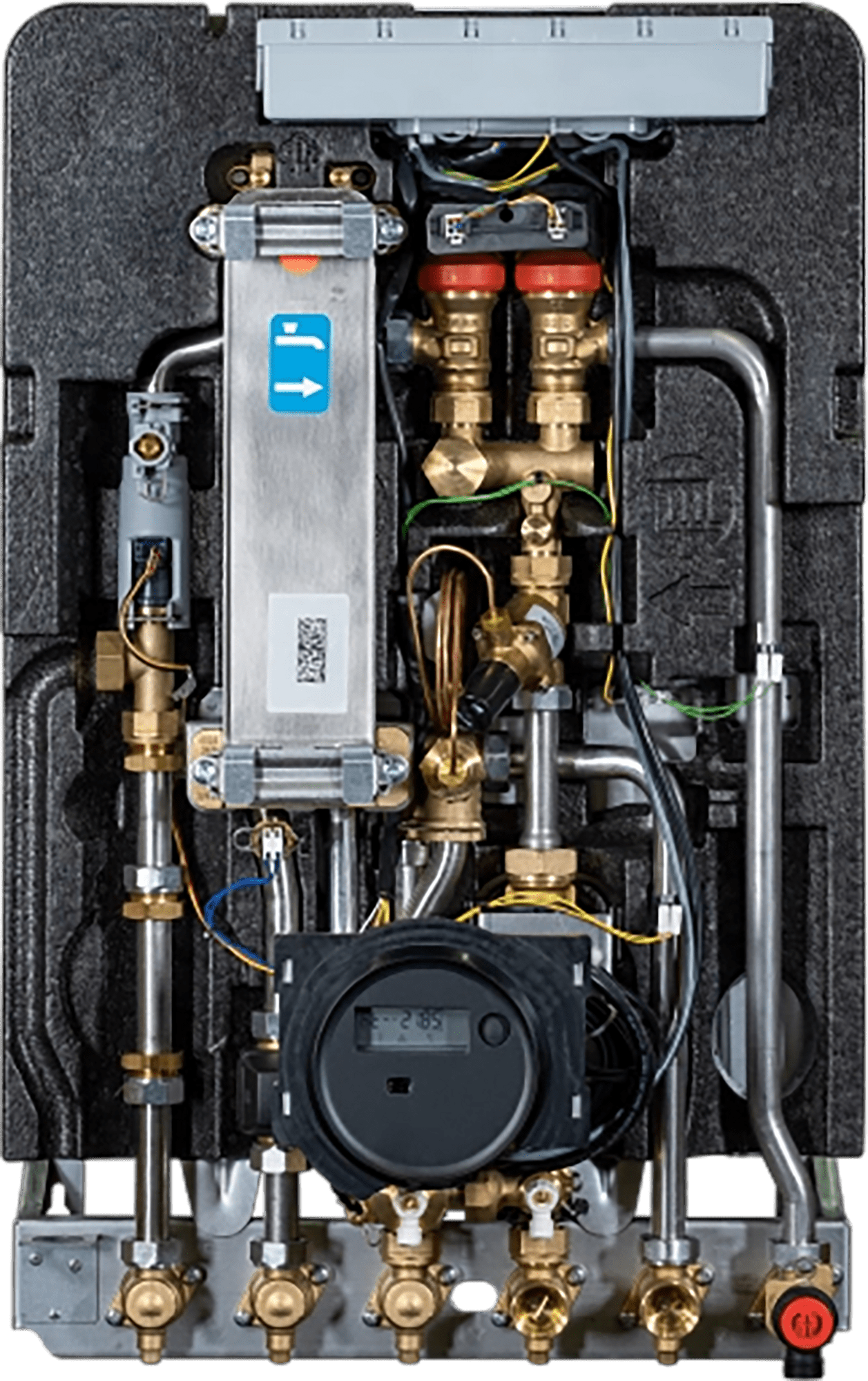

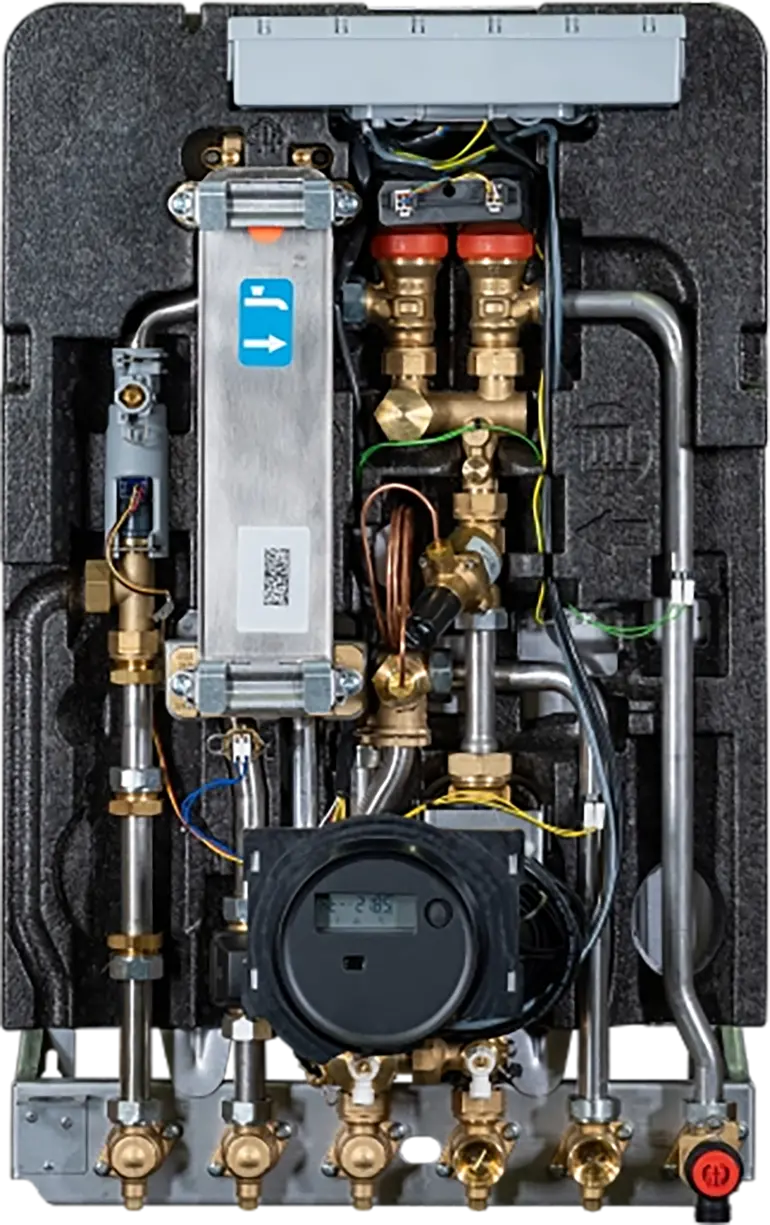

This unit comprises of one heat exchanger for providing instant domestic hot water (DHW) at a regulated temperature. Space heating is supplied via a controlled direct connection from the heat network.
Our Flow 8000 Heat Interface Unit (HIU) is the perfect solution for providing instantaneous hot water and direct heating to properties which are serviced from district heating and applications with a centralised plant room incorporating renewable heat sources.

The HIU is Direct, so the primary heat supply is hydraulically separated for DHW production whilst space heating is a controlled direct supply to the apartment heating system.
The HIU also comes complete with a separate first fix rail pipe work jig which allows for the system to be pre-plumbed before the unit is installed.
There are six variants available.
