Greenstar Indirect HIU

Book a Site Visit

Our heat interface unit provides domestic hot water and space heating for properties that use district heating or centralised boiler plants. Supplied with or without heat meter.

Domestic hot water and space heating for properties that use district heating or centralised boiler plants
Domestic hot water and central heating on demand with hydraulic system separation and two heat exchangers
Domestic hot water and space heating temperature control
Domestic hot water heat exchanger to operate on demand only
Flexible installation with initial installation bar
Optionally integrated heat meter

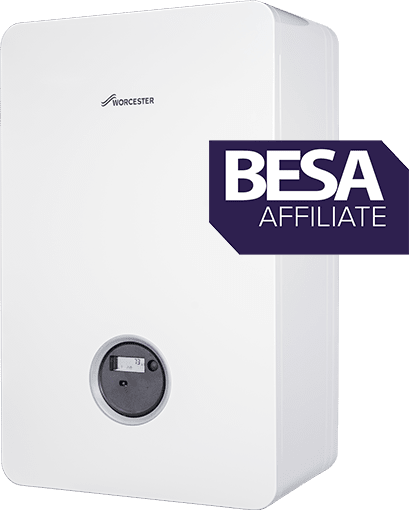

BESA 2018 registered

Benefits

Overview

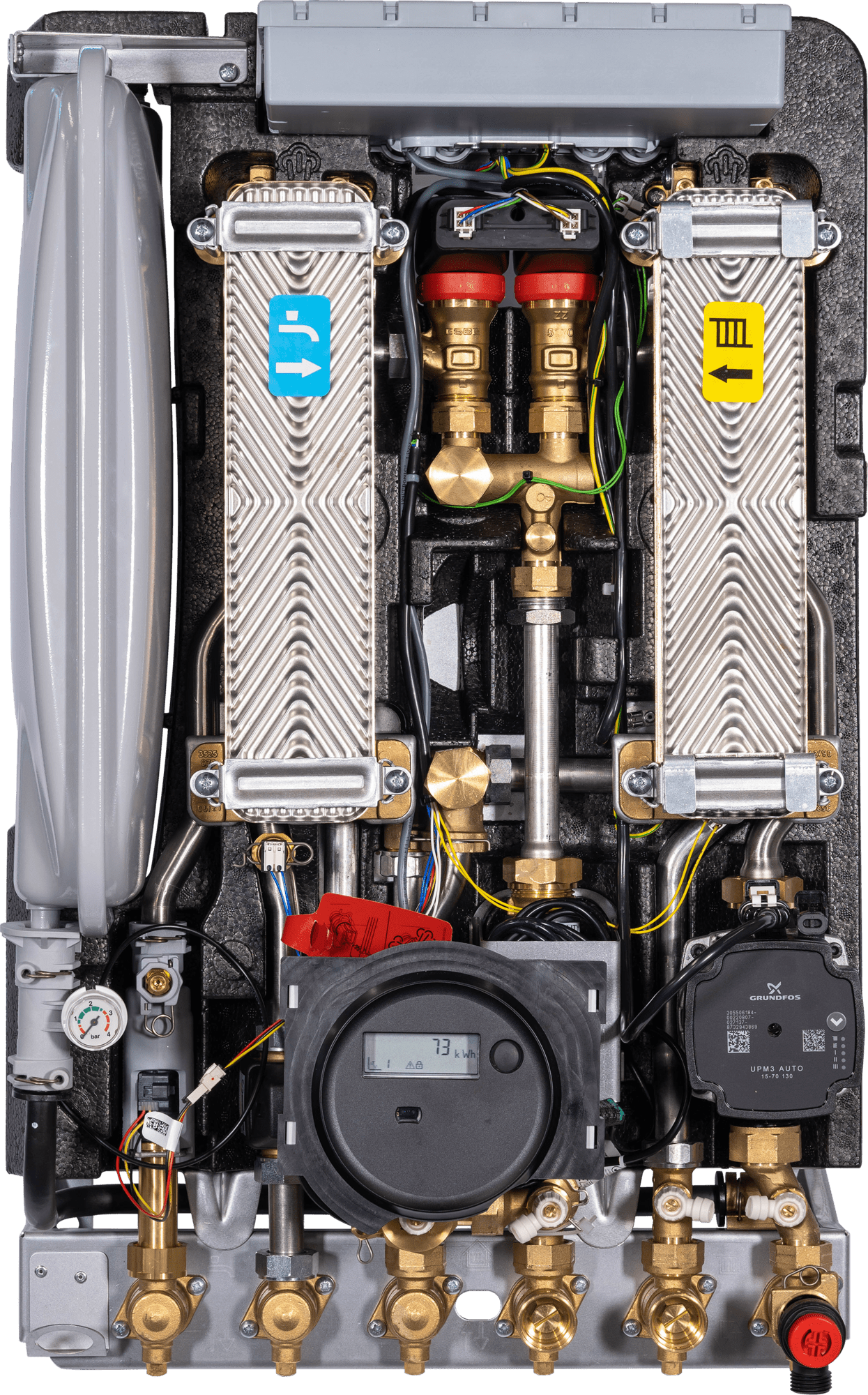

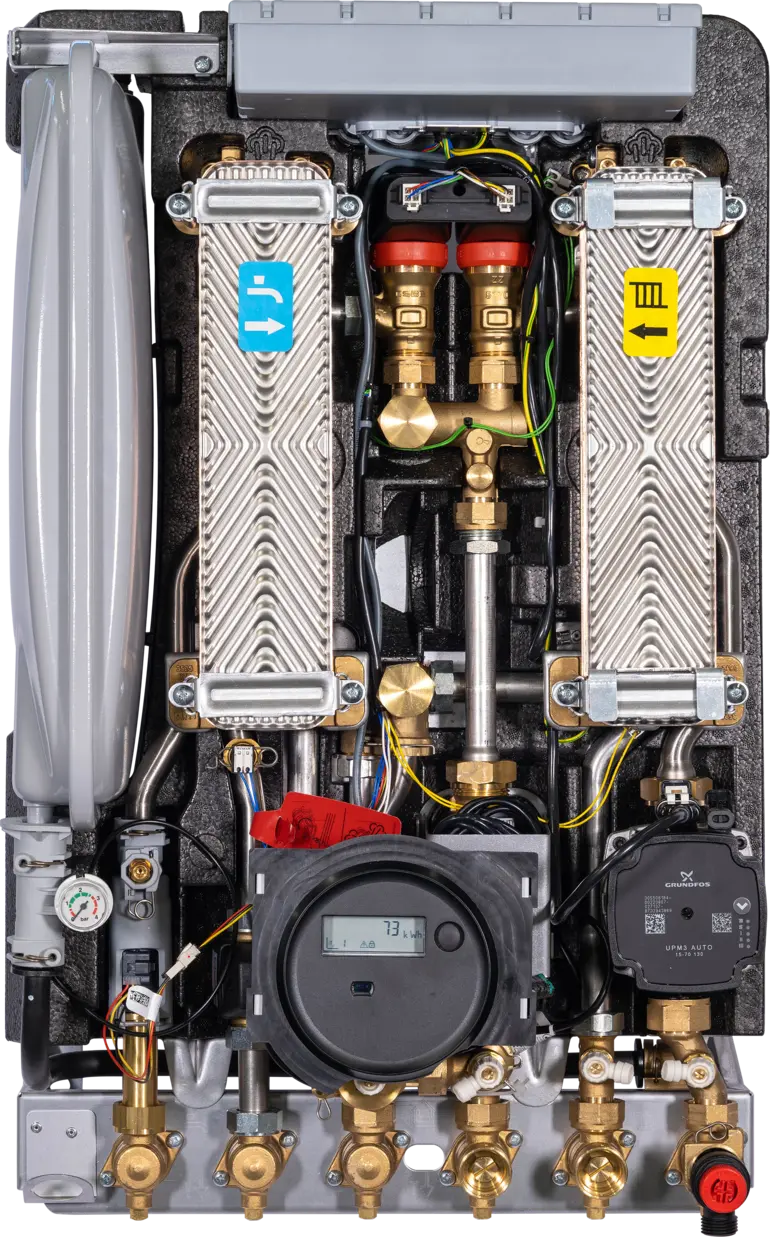

This unit comprises of two heat exchangers, one for providing instant domestic hot water (DHW) at a regulated temperature and the second for space heating within the property. The unit is indirect so the primary heating circuit is hydraulically separated from the property space heating by a plate heat exchanger and operates only when DHW or space heating is required.
Our Heat Interface Unit (HIU) is the perfect solution for providing district hot water and space heating to properties which are serviced from district heating and applications with a centralised plant room.

Construction

The HIU is indirect so the primary heating circuit is hydraulically separated from the property space heating by a plate heat exchanger. The unit operates only when DHW or space heating is required ensuring energy efficient operation.
The HIU also comes complete with a separate first fix rail pipe work jig which allows for the system to be pre-plumbed before the unit is installed.
There are 2 variants available.

More about product

Downloads

Technical Details and Documents

Technical data

Type designation, market-specific

HIU KE w/ HM
Max. pressure drinking water side

10 bar
Height

700 mm
Width

440 mm
Depth

270 mm
Net weight

27.1 kg
Max. adjustable domestic hot water temperature

60°C
Min. adjustable domestic hot water temperature

30°C
Part number

7735600725

HIU Technical Documents

HIU Installation Manual (PDF 7.2 MB) HIU User Manual (PDF 1.9 MB) HIU Technical Data Sheet (PDF 0.6 MB)
