Condens 7000 WP
A condensing wall-hung and floor-standing commercial boiler series, suitable for larger domestic properties, commercial, hybrid and communal systems.
Ask a query
Why install the Condens 7000WP
-
Guaranteed
5 years peace of mind for you and your customers
-
Quick installation
Rapid installation thanks to our new frame kit design
-
Efficient
Automatic modulation to match heat demand
Power up
- Available in natural gas and LPG*.
- Outputs of 50kW, 65kW, 85kW, 100kW, 125kW and 145kW.
- Ability to cascade in banks up to 860kW.
- Perfect for small spaces and low ceiling environments with 570kW achievable in 1m2.
- Low Class 6 NOx.
- BIM level 2 available.
Quick installation

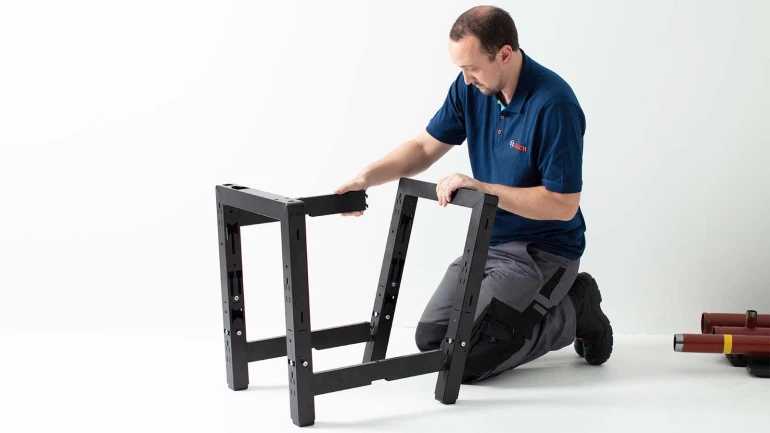

- Rapid installation time thanks to our new frame kit design.
- ‘Build from the ground up’ installation concept with minimal tools required.
- Save up to 60% on the average installation time compared to GB162 V2.*
- New touch screen display provides complete control for faster commissioning and fault-finding.
*Time savings estimated and observed during customer installation studies.
Book a training course Installation videos
High efficiency
- Can be cascaded to suit a wide variety of system outputs and hydraulic requirements.
- Flexible control strategies for Building Management System connection, MEC Remote connection, standard interface or third-party controls.
- We offer free, no obligation project consultations and site visits to assist with your specification
Getting started
-
Register a product
To register a boiler or cascade system and activate the 5 year guarantee, visit the link below.
Click here to find out more -
Book commissioning
In order to book commissioning for a boiler or cascade system, simply complete the pre-commissioning checklist below.
Click here to find out more
Technical Documents
- How-to Videos (PDF 1.8 MB)
- Technical Data Sheet 50-100 (PDF 0.4 MB)
- Technical Data Sheet 125-145 (PDF 0.5 MB)
- Installation Manual GC7000WP 50-100 (PDF 10.8 MB)
- Installation Manual GC7000WP 125-145 (PDF 10.7 MB)
- Operation Manual 50-145 (PDF 2.2 MB)
- Spares Parts List GC7000WP 50-145 (PDF 5.8 MB)
- Flue Gas Routing Guide GC7000WP 50-145 (PDF 6.1 MB)
- CAD files GC7000WP in-line cascades (DWG 0.7 MB)
- Operators Log Water Quality (PDF 0.3 MB)
- Installation: Mandatory CO detectors for cascade flues (PDF 0.1 MB)
- Flue & Ventilation Guide (PDF 2.4 MB)
- Condens 7000 WP Tech and Spec (PDF 10.3 MB)
- Installer Brochure (PDF 4.5 MB)
- Homeowner Guide (PDF 0.6 MB)
FAQs
result found for ""
results found for ""
How do I connect 230v controls? Is a RTH convertor still required?
How do I connect 230v controls? Is a RTH convertor still required?
You can wire a 240vac or a 24v enable into the RTH converter (78079). For the 240vac enable firstly locate the 240vac 3pin connecter block inside the RTH converter marked with 1, 2 and 3 connections, 1 = Switch Live Connection, 2 = Neutral Connection and 3 = Is Not Used. The 24v enable is also possible when wired into the 24vac connector, this is done by removing the link from 1 and 2 and wiring in your 24v controller into those same connections, these are not polarity sensitive connectors.
How many boilers can I cascade?
How many boilers can I cascade?
The boilers can be cascaded in banks of six, using our in-line or back-to-back cascade kits, providing up to 858kW output. You can control up to 16 boilers by linking multiple MC400 control sequencers (7738111001).
What are the boiler weights?
What are the boiler weights?
50 – 100kW without pump groups are 74kg
125 and 150kW without pump group are 97kg
Do Bosch offer more flue solutions?
Do Bosch offer more flue solutions?
Bosch offers a wide range of flue routing solutions in size DN110/160. These include standard vertical and horizontal termination, under pressure and over pressure cascade sets. Flexi flues and plume management kits and a variety of termination solutions are also available, speak to your local commercial sales manager for specification assistance.
How do I get into chimney sweep mode for maximum and minimum settings?
How do I get into chimney sweep mode for maximum and minimum settings?
Press and hold OK.
Count down will appear.
Click OK.
Press ^ arrow to enter min or max, the boiler will fire in max to start.
Can I replace a GB162 with a GC7000WP? V1’s? V2’s?
Can I replace a GB162 with a GC7000WP? V1’s? V2’s?
You can connect a GC7000WP to an existing GB162 pump group using a conversion kit (from V1 7736701877) (from V2 7736701878) for 50KW – 100KW only.
Are the existing controls compatible? Old/new?
Are the existing controls compatible? Old/new?
The older 4000 series of controls will not be compatible with the GC7000WP. The new 8000 control range and modules will be fully compatible. Please speak to your local commercial sales manager for specification assistance.
Can the Bosch Easy Control work with the GC7000WP?
Can the Bosch Easy Control work with the GC7000WP?
The Bosch EasyControl is compatible with the GC7000WP boiler (50-100kW outputs only) if only 1 heating circuit is used and the 3-way valve accessory (7736701881) is installed for stored hot water requirements.
Is there a hot water solution available?
Is there a hot water solution available?
Yes. Bosch offer a range of hot water storage solutions and control, please speak to your local commercial sales manager for specification assistance.
Is the HMI user friendly?
Is the HMI user friendly?
For installers that are familiar with the domestic 8000 boiler range, the GC7000WP shares the same touch screen control for intuitive set up and operation.
How do I assemble the cascade frame?
How do I assemble the cascade frame?
Please see the video’s in the link below:
https://www.bosch-thermotechnology.com/gb/en/commercial-industrial/condens7000/
Is the GC7000WP a wall hung boiler?
Is the GC7000WP a wall hung boiler?
The GC7000WP comes with a wall hanging bracket as standard. Installers have the option to hang the boiler on the wall or use our frame kits.
