Outdoor units

AF4300A Mini (R-410A)

Mini VRF outdoor range with 8 to 16 kW output

The AF4300A Mini VRF outdoor units, with compact dimensions and lightweight design, can be installed in smaller buildings and outdoors on balconies or rooftops.

With R-410A refrigerant
Small footprint and low weight
Extended piping length
Full DC inverter technology

Benefits

Compact design

The unit features a low height of less than 1 meter and is equipped with only one fan. Its compact dimensions reduce both installation and transport efforts, making it an optimal choice for buildings with limited installation space. Additionally, installation on balconies, terraces, or rooftops is possible.

R-410A refrigerant

The Mini VRF outdoor units utilize the environmentally friendly R-410A refrigerant.

Extended piping lengths

A total piping length of up to 300 meters and a maximum length of is 100 meters is possible, providing increased flexibility in planning and installation (for 12,14,16kW units).

Full DC inverter technology

All electrical components are using DC power supply, which enhances electrical efficiency and allows energy savings.

Technical Details and Documents

Documents

All technical and legal documents

Show now

Technical data

Power supply (V)

220 V
Power supply (ph)

1 Phase
Power supply (Hz)

50 Hz
Power input cooling

4 kW
SEER

5,4
Heating capacity

7,2 kW
Power input heating

3 kW
SCOP

3,8
Connected indoor units capacity (min)

50 %
Connected indoor units capacity (max)

160 %
Compressortype

Rotary compressor
Pipe connection liquid Ø

9,52 mm mm
Pipe connection gas Ø

15,90 mm mm
Sound pressure level

55 dB(A)
Net dimensions (W)

1038 mm
Net dimensions (H)

864 mm
Net dimensions (D)

409 mm
Packed dimensions (W)

560
Packed dimensions (H)

980
Packed dimensions (L)

1120
Net weight (kg)

83
Gross weight (kg)

97
Contains fluorinated gases?

Contains fluorinated greenhouse gases
Refrigerant

R410A
Refrigerant factory charge

3,1 kg
GWP of refrigerant

2088 kgCO2eq
CO2 equivalent of precharged HFC-equipment

6,472 tCO2eq
Hermetically sealed equipment

not hermetically sealed
ERP

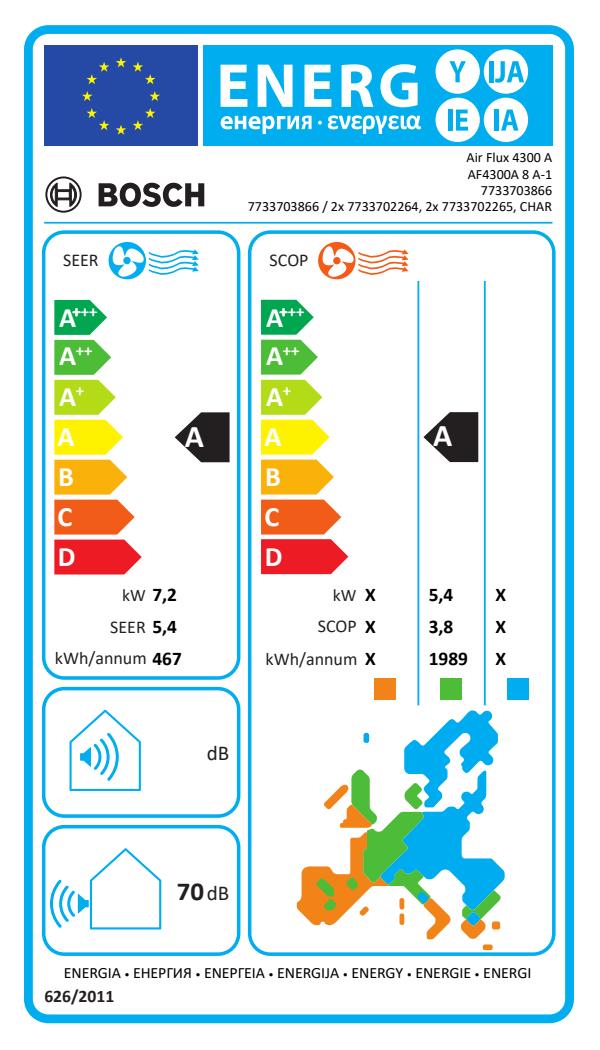

ErP label

Download now (PNG)
Product fiche

Download now (PDF)
Part number

7733703866
